Durable Training Phantom for Ultrasound

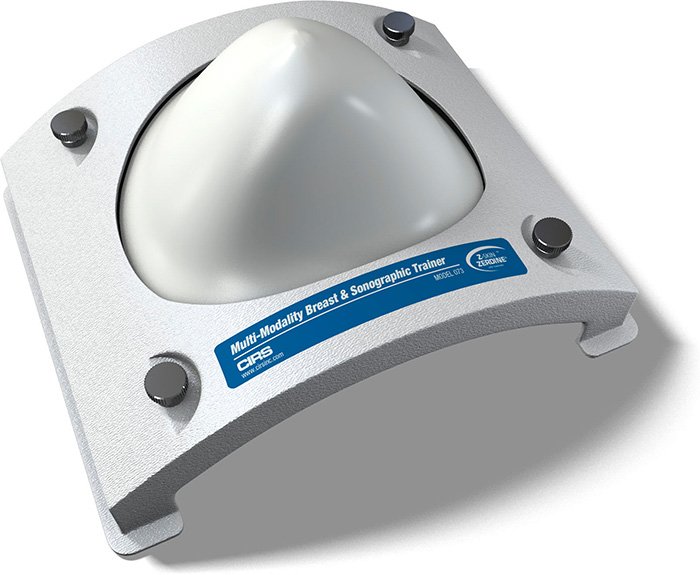

Multi-Modality Breast Biopsy and Sonographic Trainer includes a flexible Z-Skin™ membrane that simulates the look and feel of skin during scanning and biopsy. The skin material closes up on itself after puncture with a needle, providing good protection from dessication even after multiple training sessions.
The phantom accurately mimics the heterogeneous appearance of breast tissue under ultrasound, mammography and MRI, and has cystic and dense lesions embedded within the breast background. Half of the dense lesions are spherical and have a 100-300 micron microcalcification embedded within it, while the other half have a spiculated shape. In addition to helping users identify different types of masses in the complex structure of the breast, the calcifications are useful markers for image registration between modalities.
Features:
Compatible with X-ray, Ultrasound, and MRI
Heterogeneous tissue to simulate imaging of human breast
Encased in flexible membrane for increased durability
Self-healing material for extended phantom use
Cystic, dense, high stiffness and attenuative masses for biopsy training
Specifications:
Dimensions - 12cm x 10cm x 9cm - or - 4.7" x 4" x 3.5"
Weight - .4kg (1lb)
Size - 500cc
Membraine Material - Z-Skin™
Background Gel Material - Zerdine based emulsion
Cystic Masses:
Qty: 5-10
Material: water with thickening agent and green dye
Size: 3-10mm in diameter
Shape: Spherical or elliptical shape
Dense Masses:
Qty: 10-15
Material: Zerdine-based, hyperechoic under ultrasound
Size: 5-10mm in diameter
Half spherical with embedded microcalcifications (100-300 microns)
Half spiculated
