Ferralert Solo Detector

SKU: MG-2507
CALL FOR PRICING
Ferralert Solo Detector
Ferralert Solo Detector
Ferralert Solo Detector
Ferralert Solo Detector
Ferralert Solo Detector
(Click to see larger image and other views)
Product Details
Ferralert Solo Detector

Ferromagnetic screener for patients and personnel - The latest advancement in Pre-Screening Technology for MRI Safety

Accurately and Quickly Locates Ferrous Hazards Anywhere on the Body
12 Sensors for Uniform Sensitivity
No-Touch Activation
Consistent, Simple and Unambiguous Operation
Highly Sensitive
Used to Self-screen or for Supervised Screening
Variety of Simple Installation Options
Inexpensive

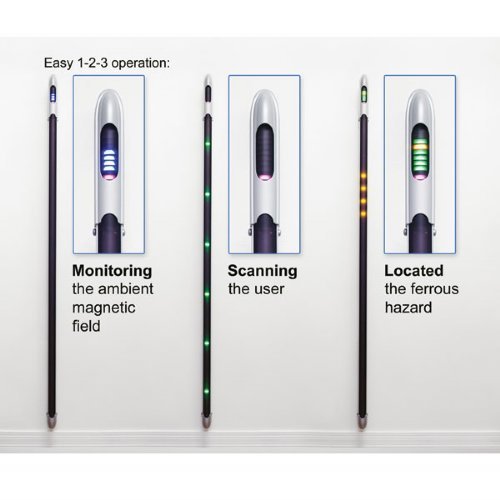

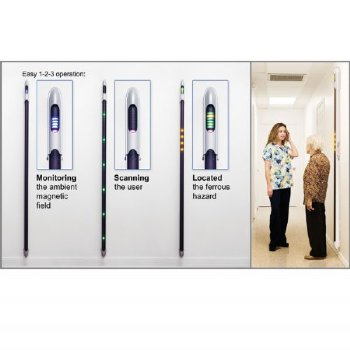

OPERATION
APPROACH FERRALERT SOLO DETECTOR. When close to the detector, 6 green READY TO SCAN lights in the array will turn on.

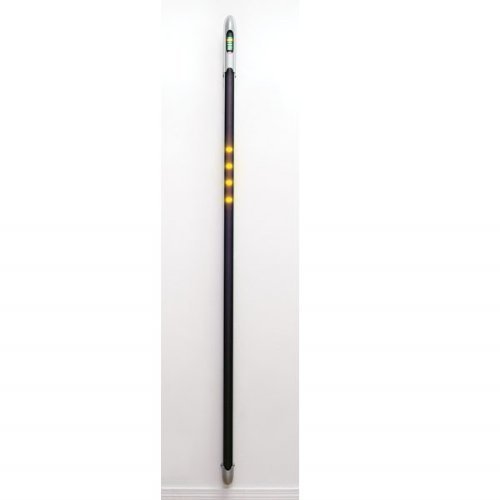

MAKE A COMPLETE ROTATION. If any ferromagnetic hazard is detected, the green READY TO SCAN lights will turn off. An audio alert will sound briefly and amber LOCATION DETECTION lights will flash on the array at the location of the detected ferromagnetic hazard. Additionally, an indicator at the top of the array aids the screening supervisor to see the location of the ferromagnetic hazard.

IF THE GREEN READY TO SCAN LIGHTS STAY LIT, NO FERROMAGNETIC HAZARDS WERE DETECTED. After moving away, the detector will return to standby mode. The purple POWER indicator will be illuminated. The detector constantly monitors the ambient magnetic field and the blue bar graph at the top of the array displays the degree of magnetic disturbance.

SPECIFICATIONS
NUMBER OF DETECTION ZONES: Six (6)
HEIGHT OF UNIFORM SENSITIVITY: Greater than six (6) feet
HAZARD LOCATION INDICATORS: Four (4] amber flashing lights at height of threat and on a display at the top of array.
AMBIENT MAGNETIC DISTURBANCE INDICATOR: Eight (8) blue bars
FERROMAGNETIC HAZARD SENSITIVITY: Adjustable
AUDIO INDICATOR: Selectable, adjustable volume
MOUNTING: Wall or free-standing with optional base
POWER REQUIREMENT: 1 00 to 240 VAC, 4 7 to 63 Hz, 30 watts
BATTERY OPERATION: Optional
DIMENSIONS: Height 86 1/ 4" (220 cm), Depth 2 112" (6.5 cm), Width 2" (5 cm)

For an additional fee you can get installation and training by KDI Field Engineer, please call customer service to add on.
