MRI Non-Magnetic Emergency and Transport Ventilator

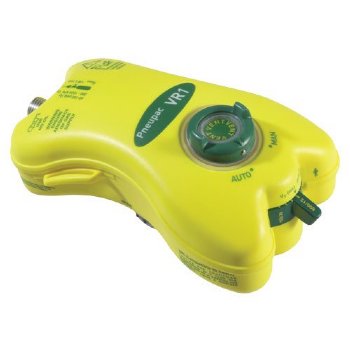

MRI Compatible Emergency VR1 Ventilator w/Regulator and Circuit is designed for caregivers wherever breathing failure emergencies occur: in hospitals, industrial or commercial setting, transport situations, or remote locations. The unit's simplicity, portability, and safety make it the ideal choice for emergency ventilation. A single control for setting the frequency and tidal volume, including a click-stop setting at the recommended adult position, enables rapid set-up in demanding circumstances. Auto/manual controls, a patient demand system, MRI compatibility, and other features provide the means to manage respiratory emergencies.
1 Year Warranty
Technical Specifications
- Principle of Operation
Oxygen powered, hand-held control unit with
patient valve including automatic and manual
modes with demand breathing
- Manual Mode
Preset breaths, singly or in a controlled
breathing pattern may be selected by use
of a push-button or omni-directional lever
- Automatic Mode
The ventilatory resuscitator cycles in
accordance with the setting of a single control
that changes the tidal volume and frequency
dependently with a constant I:E ratio of 1:2
- Patient Type
Patients above 10kg with and without
spontaneous breathing
- Demand
Included
- Control
Single, calibrated, tidal volume/frequency
control gives simultaneous and inter-
dependent adjustment of tidal volume
and frequency
- Tidal Volume and Frequency
150 ml/25 bpm |
750 ml/11 |
300 ml/20 bpm |
900 ml/10 bpm |
450 ml/15 bpm |
1050 ml/10 bpm |
600 ml/12 bpm (detent) |
|
- Flow Range
11-32 L/min
- Air Mix
No
- Pressure Relief with Pneumatic Alarm
40 cm H2O standard
60 cm H2O optinal when purchased
- Dimensions
Length: 6.69 inches (170 mm)
Width: 3.74 inches (95 mm)
Height: 3.94 inches (100) including patient valve
