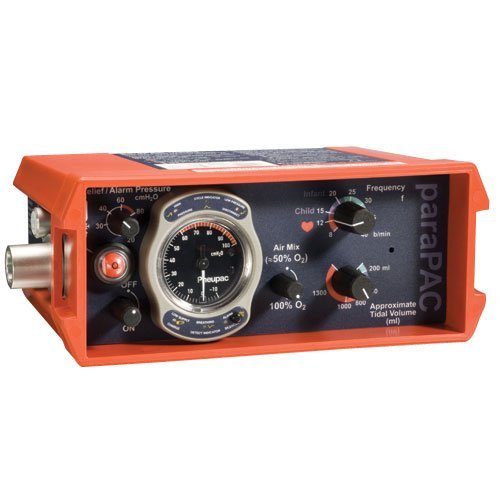

MRI Compatible ParaPac Ventilator with Integrated Alarms

SKU: VE-4003
Price: $11,920.00
MRI Compatible ParaPac Ventilator with Integrated Alarms
MRI Compatible ParaPac Ventilator with Integrated Alarms
Product Details
MRI Non-Magnetic ParaPac with Integrated Alarms

Designed specifically for use by respiratory therapists, paramedics, and trained emergency personnel, Transpac enables greater control of breathing parameters. The dual controls allow easy selection of tidal volume and frequency to match your patient's ventilatory requirements. Suitable for ventilation during emergency or controlled transportation of adults, children and infants. MRI compatibility gives maximum flexibility for transport within the hospital.
Product Features
1 Year Warranty
Separate controls for tidal volume and frequency
Unique CMV/Demand - Demand feature
Patented mode of operation
Adjustable pressure relief with audible alarm
Air mix facility
Optional PEEP facility
Integrated pressure monitoring/alarm system
MRI compatible up to 3 Tesla
Low gas supply indicator
Pneumatically powered
Lightweight and durable
Specifications / Technical Data

Principle of Operation

Time/volume cycled

User Type

Adults, children and infants greater than 11 lbs (5 kg)

Ventilation Mode

Demand SMMV/demand

Tidal Volume

1300 70 ml


8 40 b/min (12 b/min at click stop)

Flow Range

6 60- L/min

I:E Ratio

1:3 at 8 b/min to 1:1.3 at 40 b/min

Air Mix

100 or 50% O2

Pressure Relief with Pneumatic Audible Alarm

20" 80 cm H2O (20" 80 x 100Pa)

Inflation Pressure Monitor

-10 to + 100cmH2O
-10 to + 100 (x 100) Pa

PEEP Capability

Optional 0" 20 cmH2O
(0" 20 x 100Pa)

MRI Compatible

3 Tesla actively shielded magnet with a max gradient of 430G/cm and RF of 0.82 W/kg at 125.5 Mhz


3.7H x 8.7W x 6.4D in
92H x 220W x 162D mm


6.8 lbs (3.1 kg) with integrated alarm system


EN60601-1, EN794-3: 1999
